不锈钢对焊无缝管件
技术规范
● 材质不锈钢304或316L/316
● 满足GB/T12459-2005
● 管件壁厚满足ASME B36.19M,SCH10S或SCH40S
长半径90°弯头
| 通径 | D | A | SCH10S弯头型号 | S | SCH40S弯头型号 | S |
| 15 | 21.3 | 38 | BWW-DN15-10S-SS | 2.11 | BWW-DN15-40S-SS | 2.77 |
| 20 | 26.9 | 38 | BWW-DN20-10S-SS | 2.11 | BWW-DN20-40S-SS | 2.87 |
| 25 | 33.7 | 38 | BWW-DN25-10S-SS | 2.77 | BWW-DN25-40S-SS | 3.38 |
| 32 | 42.4 | 48 | BWW-DN32-10S-SS | 2.77 | BWW-DN32-40S-SS | 3.56 |
| 40 | 48.3 | 57 | BWW-DN40-10S-SS | 2.77 | BWW-DN40-40S-SS | 3.68 |
| 50 | 60.3 | 76 | BWW-DN50-10S-SS | 2.77 | BWW-DN50-40S-SS | 3.91 |
| 65 | 73 | 95 | BWW-DN65-10S-SS | 3.05 | BWW-DN65-40S-SS | 5.16 |
| 说明：以上型号材质为不锈钢304，如需不锈钢316L材质，请把“-SS”改为“-SL”即可。 | ||||||
长半径45°弯头
| 通径 | D | A | SCH10S弯头型号 | S | SCH40S弯头型号 | S |
| 15 | 21.3 | 16 | BWE-DN15-10S-SS | 2.11 | BWE-DN15-40S-SS | 2.77 |
| 20 | 26.9 | 19 | BWE-DN20-10S-SS | 2.11 | BWE-DN20-40S-SS | 2.87 |
| 25 | 33.7 | 22 | BWE-DN25-10S-SS | 2.77 | BWE-DN25-40S-SS | 3.38 |
| 32 | 42.4 | 25 | BWE-DN32-10S-SS | 2.77 | BWE-DN32-40S-SS | 3.56 |
| 40 | 48.3 | 29 | BWE-DN40-10S-SS | 2.77 | BWE-DN40-40S-SS | 3.68 |
| 50 | 60.3 | 35 | BWE-DN50-10S-SS | 2.77 | BWE-DN50-40S-SS | 3.91 |
| 65 | 73 | 44 | BWE-DN65-10S-SS | 3.05 | BWE-DN65-40S-SS | 5.16 |
| 说明：以上型号材质为不锈钢304，如需不锈钢316L材质，请把“-SS”改为“-SL”即可。 | ||||||
不锈钢对焊无缝管件 等径三通
| 通径 | D | A | SCH10S三通型号 | S | SCH40S三通型号 | S |
| 15 | 21.3 | 25 | BWT-DN15-10S-SS | 2.11 | BWT-DN15-40S-SS | 2.77 |
| 20 | 26.9 | 29 | BWT-DN20-10S-SS | 2.11 | BWT-DN20-40S-SS | 2.87 |
| 25 | 33.7 | 38 | BWT-DN25-10S-SS | 2.77 | BWT-DN25-40S-SS | 3.38 |
| 32 | 42.4 | 48 | BWT-DN32-10S-SS | 2.77 | BWT-DN32-40S-SS | 3.56 |
| 40 | 48.3 | 57 | BWT-DN40-10S-SS | 2.77 | BWT-DN40-40S-SS | 3.68 |
| 50 | 60.3 | 64 | BWT-DN50-10S-SS | 2.77 | BWT-DN50-40S-SS | 3.91 |
| 65 | 73 | 76 | BWT-DN65-10S-SS | 3.05 | BWT-DN65-40S-SS | 5.16 |
| 说明：以上型号材质为不锈钢304，如需不锈钢316L材质，请把“-SS”改为“-SL”即可。 | ||||||

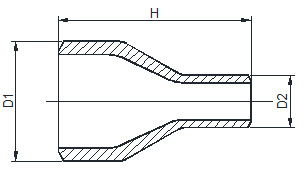

同心异径接头
| 通径 | D1 | D2 | H | SCH10S接头型号 | SCH40S接头型号 |
| 20*15 | 26.9 | 21.3 | 38 | BWR-DN20*15-10S-SS | BWR-DN20*15-40S-SS |
| 25*15 | 33.7 | 21.3 | 51 | BWR-DN25*15-10S-SS | BWR-DN25*15-40S-SS |
| 25*20 | 33.7 | 26.9 | 51 | BWR-DN25*20-10S-SS | BWR-DN25*20-40S-SS |
| 32*15 | 42.4 | 21.3 | 51 | BWR-DN32*15-10S-SS | BWR-DN32*15-40S-SS |
| 32*20 | 42.4 | 26.9 | 51 | BWR-DN32*20-10S-SS | BWR-DN32*20-40S-SS |
| 32*25 | 42.4 | 33.7 | 51 | BWR-DN32*25-10S-SS | BWR-DN32*25-40S-SS |
| 40*15 | 48.3 | 21.3 | 64 | BWR-DN40*15-10S-SS | BWR-DN40*15-40S-SS |
| 40*20 | 48.3 | 26.9 | 64 | BWR-DN40*20-10S-SS | BWR-DN40*20-40S-SS |
| 40*25 | 48.3 | 33.7 | 64 | BWR-DN40*25-10S-SS | BWR-DN40*25-40S-SS |
| 40*32 | 48.3 | 42.4 | 64 | BWR-DN40*32-10S-SS | BWR-DN40*32-40S-SS |
| 50*20 | 60.3 | 26.9 | 76 | BWR-DN50*20-10S-SS | BWR-DN50*20-40S-SS |
| 50*25 | 60.3 | 33.7 | 76 | BWR-DN50*25-10S-SS | BWR-DN50*25-40S-SS |
| 50*32 | 60.3 | 42.4 | 76 | BWR-DN50*32-10S-SS | BWR-DN50*32-40S-SS |
| 50*40 | 60.3 | 48.3 | 76 | BWR-DN50*40-10S-SS | BWR-DN50*40-40S-SS |
| 65*40 | 73 | 48.3 | 89 | BWR-DN65*40-10S-SS | BWR-DN65*40-40S-SS |
| 65*50 | 73 | 60.3 | 89 | BWR-DN65*50-10S-SS | BWR-DN65*50-40S-SS |
| 说明：以上型号材质为不锈钢304，如需不锈钢316L材质，请把“-SS”改为“-SL”即可。 | |||||
