六角双头外螺纹接头HN
 |
螺纹类别 | 型号 | A | L | SW | E | 最大工作压力[bar] |
| R外螺纹 | HN-2RT-SS | R1/8 | 25 | 12 | 4.8 | 630 | |
| HN-4RT-SS | R1/4 | 31 | 14 | 7 | 500 | ||
| HN-6RT-SS | R3/8 | 32 | 18 | 9.5 | 500 | ||
| HN-8RT-SS | R1/2 | 40 | 22 | 12 | 350 | ||
| HN-12RT-SS | R3/4 | 44 | 27 | 16 | 315 | ||
| HN-16RT-SS | R1 | 52 | 34 | 23 | 250 | ||
| NPT外螺纹 | HN-2-SS | 1/8NPT | 25 | 12 | 4.8 | 630 | |
| HN-4-SS | 1/4NPT | 34 | 14 | 7 | 500 | ||
| HN-6-SS | 3/8NPT | 35 | 18 | 9.5 | 500 | ||
| HN-8-SS | 1/2NPT | 46 | 22 | 12 | 400 | ||
| 注：以上材质均为304不锈钢。 | |||||||
六角双头外螺纹接头HN
R螺纹到G螺纹（带橡胶软密封垫）
 |
螺纹类别 | 型号 | A | B | L | i | SW | E | 最大工作压力[bar] |
| R螺纹G螺纹 | HN-4RT-4WD-SS | R1/4 | G1/4 | 33 | 12 | 19 | 7 | 500 | |
| HN-6RT-6WD-SS | R3/8 | G3/8 | 34 | 12 | 22 | 9 | 500 | ||
| HN-8RT-8WD-SS | R1/2 | G1/2 | 40 | 14 | 27 | 12 | 350 | ||
| 注：以上材质均为304不锈钢。 | |||||||||
六角变径双头外螺纹接头HN
 |
螺纹类别 | 型号 | A | B | L | SW | E | 最大工作压力[bar] |
| R外螺纹 | HN-6RT-4RT-SS | R3/8 | R1/4 | 34 | 18 | 7.1 | 500 | |
| HN-8RT-4RT-SS | R1/2 | R1/4 | 36 | 22 | 7.1 | 350 | ||
| HN-8RT-6RT-SS | R3/8 | 36 | 22 | 9.6 | ||||
| HN-12RT-6RT-SS | R3/4 | R3/8 | 39 | 27 | 9.6 | 315 | ||
| HN-12RT-8RT-SS | R1/2 | 43 | 27 | 11.9 | ||||
| HN-16RT-8RT-SS | R1 | R1/2 | 47 | 34 | 11.9 | 250 | ||
| HN-16RT-12RT-SS | R3/4 | 48 | 34 | 15.7 | ||||
| NPT外螺纹 | HN-6-4-SS | 3/8NPT | 1/4NPT | 35 | 19 | 7.1 | 500 | |
| HN-8-4-SS | 1/2NPT | 1/4NPT | 40 | 22 | 7.1 | 400 | ||
| HN-8-6-SS | 3/8NPT | 40 | 22 | 9.6 | ||||
| 注：以上材质均为304不锈钢。 | ||||||||
螺纹变径接头A
(内螺纹大/外螺纹小)
 |
螺纹类别 | 型号 | A | B | L | SW | E | 最大工作压力[bar] |
| Rc内螺纹R外螺纹 | A-4RT-2RT-SS | Rc1/4 | R1/8 | 30 | 19 | 4.8 | 450 | |
| A-6RT-4RT-SS | Rc3/8 | R1/4 | 33 | 22 | 7 | 350 | ||
| A-8RT-4RT-SS | Rc1/2 | R1/4 | 37 | 27 | 7 | 315 | ||
| A-8RT-6RT-SS | R3/8 | 37 | 27 | 9.5 | ||||
| A-12RT-4RT-SS | Rc3/4 | R1/4 | 43 | 34 | 7 | 300 | ||
| A-12RT-6RT-SS | R3/8 | 43 | 34 | 9.5 | ||||
| A-12RT-8RT-SS | R1/2 | 43 | 34 | 12 | ||||
| A-16RT-6RT-SS | Rc1 | R3/8 | 46 | 41 | 9.5 | 250 | ||
| A-16RT-8RT-SS | R1/2 | 46 | 41 | 12 | ||||
| A-16RT-12RT-SS | R3/4 | 49 | 41 | 16 | ||||
| 注：以上材质均为304不锈钢。 | ||||||||

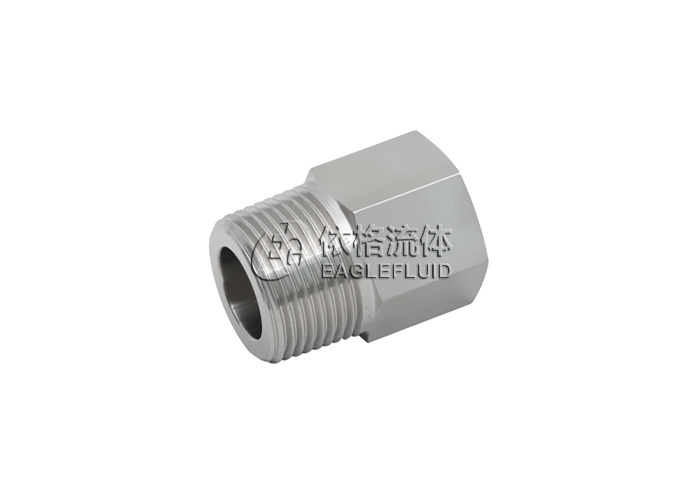

螺纹变径套管RB
(内螺纹小/外螺纹大)
 |
螺纹类别 | 型号 | A | B | L | SW | E | 最大工作压力[bar] |
| R外螺纹Rc内螺纹 | RB-4RT-2RT-SS | R1/4 | Rc1/8 | 24 | 14 | 7 | 400 | |
| RB-6RT-4RT-SS | R3/8 | Rc1/4 | 30 | 19 | 10 | 400 | ||
| RB-8RT-4RT-SS | R1/2 | Rc1/4 | 27.5 | 22 | 11 | 350 | ||
| RB-8RT-6RT-SS | Rc3/8 | 35.8 | 22 | 12 | 350 | |||
| RB-12RT-4RT-SS | R3/4 | Rc1/4 | 26 | 27 | 11 | 315 | ||
| RB-12RT-6RT-SS | Rc3/8 | 27.5 | 27 | 14 | 315 | |||
| RB-12RT-8RT-SS | Rc1/2 | 39 | 27 | 16 | 315 | |||
| RB-16RT-6RT-SS | R1 | Rc3/8 | 29 | 36 | 14 | 250 | ||
| RB-16RT-8RT-SS | Rc1/2 | 29 | 36 | 18 | 250 | |||
| RB-16RT-12RT-SS | Rc3/4 | 47 | 36 | 22 | 250 | |||
| 注：以上材质均为304不锈钢。 | ||||||||
双头内螺纹接头HCG
 |
螺纹类别 | 型号 | A | L | SW | E | 最大工作压力[bar] |
| Rc内螺纹 | HCG-4RT-SS | Rc1/4 | 26 | 19 | 11.2 | 450 | |
| HCG-6RT-SS | Rc3/8 | 27 | 22 | 14.7 | 350 | ||
| HCG-8RT-SS | Rc1/2 | 35 | 27 | 18.3 | 315 | ||
| HCG-12RT-SS | Rc3/4 | 38 | 34 | 23 | 315 | ||
| HCG-16RT-SS | Rc1 | 46 | 41 | 29 | 250 | ||
| 注：以上材质均为304不锈钢。 | |||||||
双头内螺纹弯头EF
 |
螺纹类别 | 型号 | A | L | 最大工作压力[bar] |
| Rc内螺纹 | EF-4RT-SS | Rc1/4 | 29.7 | 315 | |
| EF-6RT-SS | Rc3/8 | 32 | 300 | ||
| EF-8RT-SS | Rc1/2 | 39.6 | 280 | ||
| EF-12RT-SS | Rc3/4 | 44 | 250 | ||
| EF-16RT-SS | Rc1 | 48.5 | 210 | ||
| NPT内螺纹 | EF-4-SS | 1/4NPT | 29.7 | 315 | |
| EF-6-SS | 3/8NPT | 32 | 300 | ||
| EF-8-SS | 1/2NPT | 39.6 | 280 | ||
| 注：以上材质均为304不锈钢。 | |||||

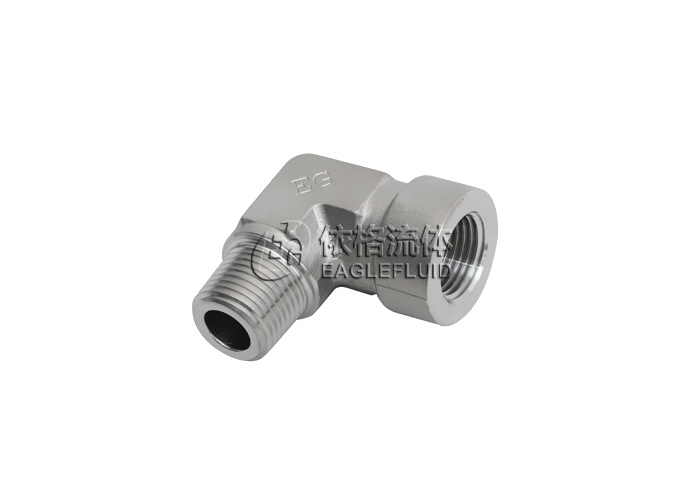

内外螺纹弯头SE
 |
螺纹类别 | 型号 | A | B | L | F | 最大工作压力[bar] |
| Rc内螺纹R外螺纹 | SE-4RT-SS | Rc1/4 | R1/4 | 29.7 | 29.7 | 315 | |
| SE-6RT-SS | Rc3/8 | R3/8 | 32 | 32 | 300 | ||
| SE-8RT-SS | Rc1/2 | R1/2 | 39.6 | 39.6 | 280 | ||
| NPT内螺纹NPT外螺纹 | SE-4-SS | 1/4NPT | 1/4NPT | 29.7 | 29.7 | 315 | |
| SE-6-SS | 3/8NPT | 3/8NPT | 32 | 32 | 300 | ||
| SE-8-SS | 1/2NPT | 1/2NPT | 39.6 | 39.6 | 280 | ||
| 注：以上材质均为304不锈钢。 | |||||||
内螺纹三通接头T
 |
螺纹类别 | 型号 | A | L | 最大工作压力[bar] |
| Rc内螺纹 | T-4RT-SS | Rc1/4 | 29.7 | 315 | |
| T-6RT-SS | Rc3/8 | 32 | 300 | ||
| T-8RT-SS | Rc1/2 | 39.6 | 280 | ||
| T-12RT-SS | Rc3/4 | 44 | 250 | ||
| T-16RT-SS | Rc1 | 44 | 210 | ||
| NPT内螺纹 | T-4-SS | 1/4NPT | 29.7 | 315 | |
| T-6-SS | 3/8NPT | 32 | 300 | ||
| T-8-SS | 1/2NPT | 39.6 | 280 | ||
| 注：以上材质均为304不锈钢。 | |||||

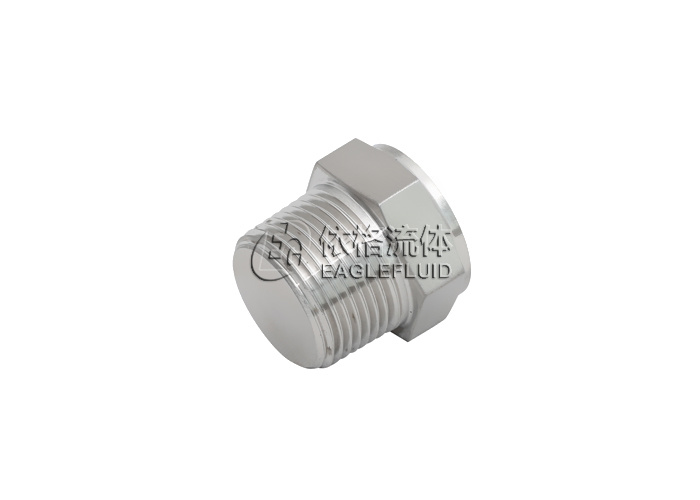

螺纹堵塞PP
 |
螺纹类别 | 型号 | A | L | SW | 最大工作压力[bar] |
| R外螺纹 | PP-4RT-SS | R1/4 | 21 | 15 | 630 | |
| PP-6RT-SS | R3/8 | 22 | 18 | 500 | ||
| PP-8RT-SS | R1/2 | 26 | 22 | 350 | ||
| NPT外螺纹 | PP-4-SS | 1/4NPT | 22.5 | 15 | 630 | |
| PP-6-SS | 3/8NPT | 23.5 | 18 | 500 | ||
| PP-8-SS | 1/2NPT | 27.5 | 22 | 350 | ||
| 注：以上材质均为304不锈钢。 | ||||||
